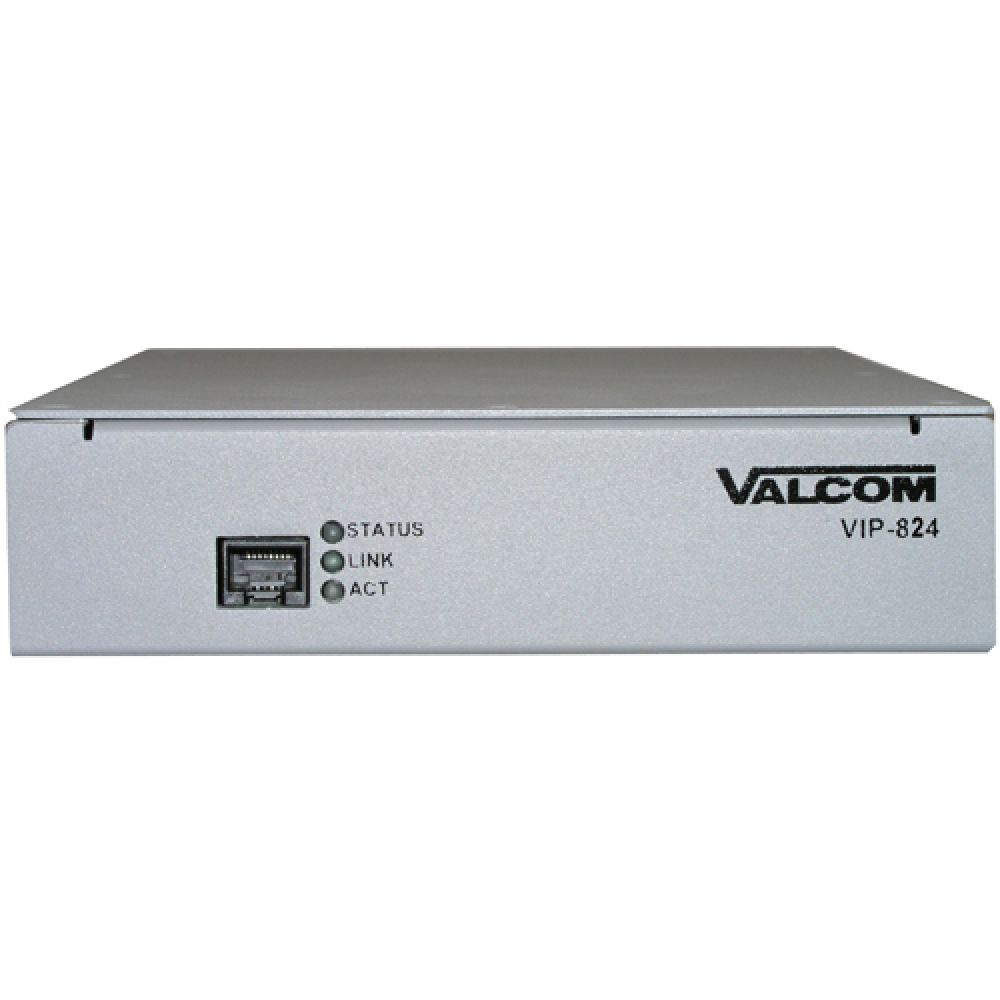

Valcom VIP-824A

Valcom VIP-824A Quad Enhanced Trunk Port (FXO)

The Valcom VIP-824A is an enhanced Network Trunk Port which allows up to 4 loop start terminal devices to be connected to a managed IP-based LAN/WAN.

Valcom VIP-824A Product Overview

The Enhanced Network Trunk Port Model VIP-824A will provide a single 10/100 Ethernet port, 4 FXO Trunk
ports and 1 Failover port. The VIP-824A will provide all circuitry and software to convert network data to audio output and analog trunk control signals. It will provide all circuitry and software to convert input audio and analog trunk events to zone page
audio and control information suitable for transmission to other Valcom IP Solutions products. The VIP-824A forms one part of a serverless Network based communications system.

Valcom VIP-824A Features:

• 4 FXO Port
• Peer-Peer, No Server Required
• Auto Destination Programmable
• DTMF Dial Select – 1024 Zones
• 1 to 11 Digit Dial Plans
• Two Way – Transmit / Receive
• POE 802.3af, Class 3, or Local Power 24 VDC
• Can Use DHCP Servers to Acquire IP Addresses
• Easy Windows® Based Setup
• 1 RJ45 Ethernet Connection
• Front Panel Activity LED
• Network Activity LEDs
• Point to Point, Zones, Groups, All Call
• UDP, Multicast
• Caller ID Information – Various Options
