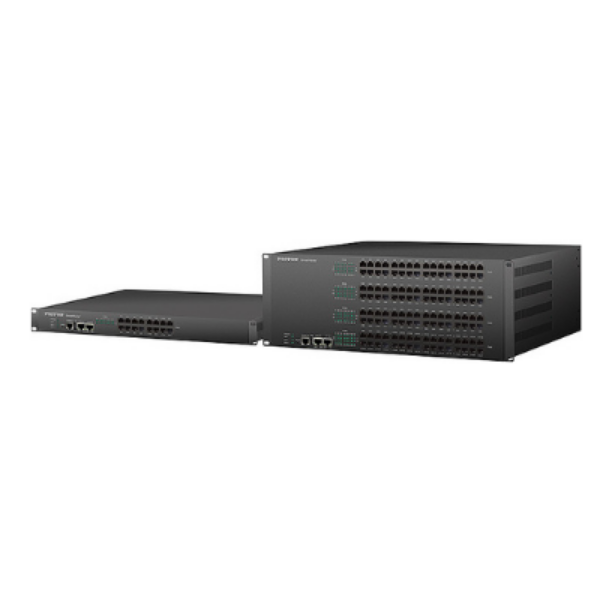

Patton SN4741/72JS72VSP/RJ11-21/RUI SmartNode 4740 72 FXS VoIP Gateway

Patton SN4741/72JS72VSP/RJ11-21/RUI SmartNode 4740 72 FXS VoIP Gateway Overview

The SN4740 series can link analog telephony equipment to SIP-based communication systems for just about any use, including hotels, casinos, campuses, and sprawling industrial facilities, with analog port densities of 16, 24, 32, 48, 64, 72, 96, and 128. The SN4740, like every other SmartNode, supports every industry-standard Codec for toll-quality speech on every call. Patton Cloud’s Call Quality Assessment and Monitoring functions, along with E-Mail or SMS notification, ensure that Service Level Agreements are met with minimal effort at the customer’s location. The integrated call-router features least-cost call routing as well as dialed-number schedule flexibility. In the event that the IP network crashes, the SmartNode survivability suite offers SIP Trunk and PSTN fallback to ensure business continuity. The Patton SN4740 provides a secure, cost-effective solution for the Enterprise, with 16 to 128 FXS (FXO coming soon) interfaces and two 10/100/1000 Ethernet ports.

Patton SN4741/72JS72VSP/RJ11-21/RUI SmartNode 4740 72 FXS VoIP Gateway Features

• 72 FXS on RJ11&3xRJ21-50pin
• K.21 basic surge protection
• 72 VoIP Calls upgradeable to eSBC (max. 200 SIP calls)
• Optional SIP-TLS/SRTP
• 2x Gig Ethernet
• 1x USB
• 1x Console
• Redundant Internal UI power (100–240 VAC)
• Patton Cloud orchestrated
• Made in the USA
