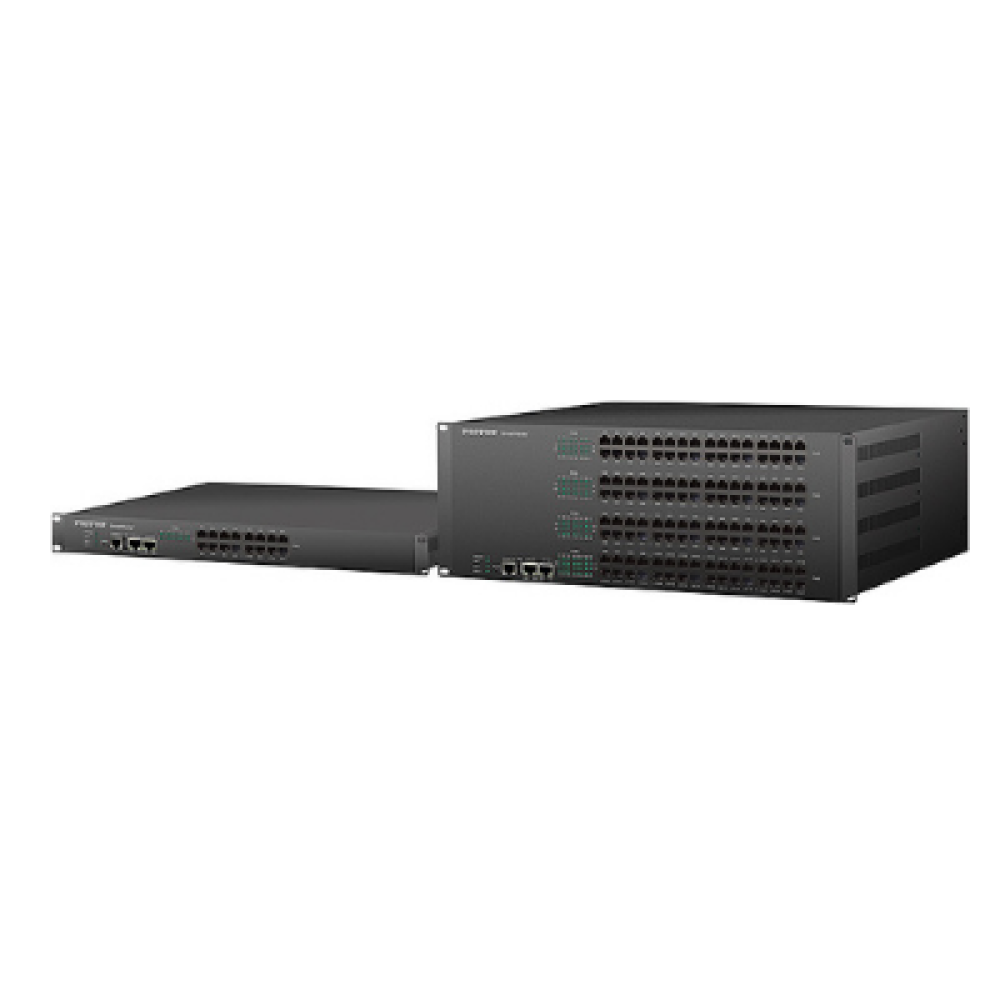

Patton SmartNode 4740 24 FXS VoIP Gateway SN4741/24JS24VSP/RJ11/EUI

Patton SmartNode 4740 24 FXSVoIP Gateway SN4741/24JS24VSP/RJ11/EUI Overview

Any industry-standard Codec for toll-quality speech is supported by the SN4740, much like every other SmartNode. Using Patton Cloud’s Call Quality Assessment and Monitoring features, as well as E-Mail or SMS alerts, it guarantees that Service Level Agreements are met at the customer premise without any effort. It is possible to eliminate Call Quality problems and reduce the time it takes to resolve them by using Patton Cloud’s remote control functions. The advanced call-routing system offers low-cost call routing as well as dialed-number scheduling convenience. The SmartNode survivability suite includes SIP Trunk and PSTN fallback in the event that the IP network fails, ensuring business continuity. Despite this, the SmartNode ensures a smooth transition to All-IP by accepting incoming PSTN calls while the VoIP service provider completes the number porting process. With the Patton SN4740 VoIP Gateway, you can keep your existing phone system when moving forward with centralized communications.

Patton SmartNode 4740 24 FXSVoIP Gateway SN4741/24JS24VSP/RJ11/EUI Overview

• 24 FXS on RJ11
• K.21 basic surge protection
• 24 VoIP Calls upgradeable to eSBC (max. 200 SIP calls)
• Optional SIP-TLS/SRTP
• Optional Transcoding (max. 16 calls)
• 2x Gig Ethernet
• 1x USB
• 1x Console
• Single External UI power (100–240 VAC)
• Redundant Power Supply (Optional)
• Patton Cloud Orchestrated
• Made in the USA
