Mobotix S74 High End IP Camera

Mobotix S74 High End IP Camera

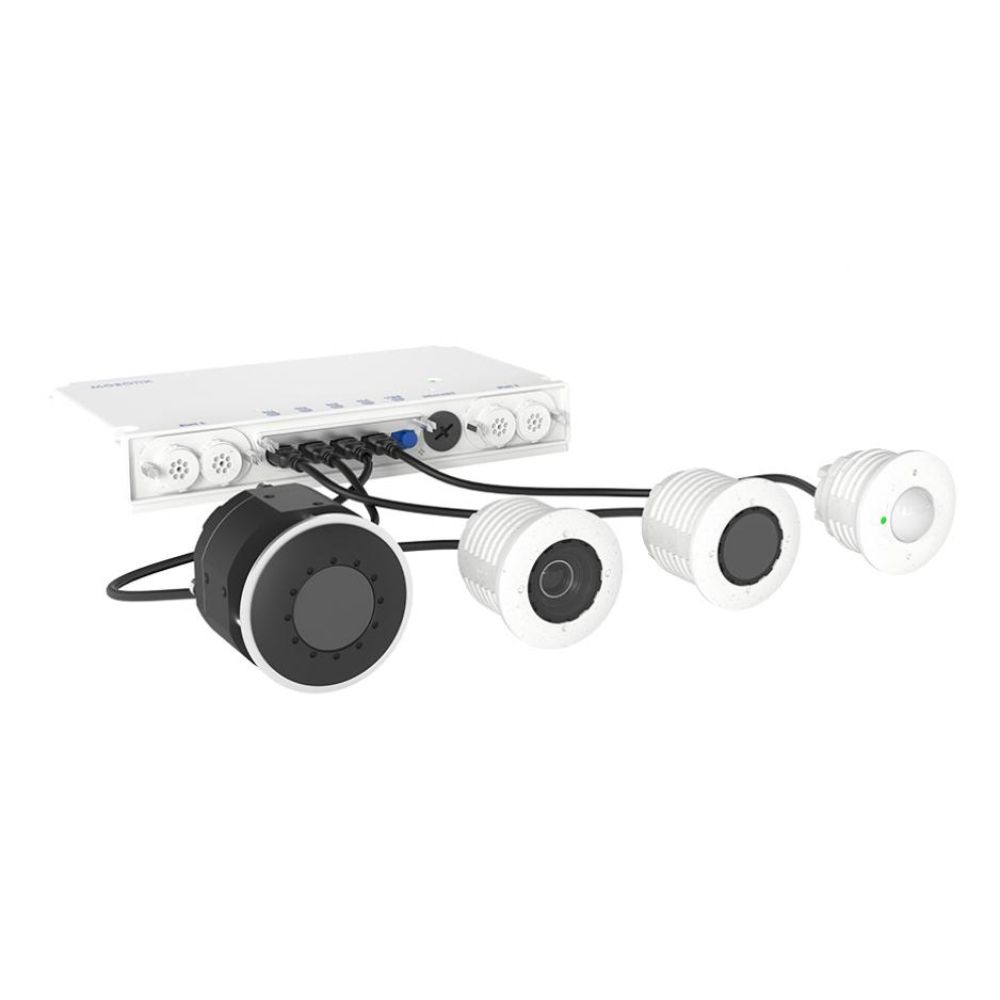

The Mobotix S74 Camera can support up to four sensor modules and function modules that are easy to assemble. Users can choose two optical modules and two function modules simultaneously. In addition if audio is needed, an additional audio board can be used (sold separately).

This is a robust, weatherproof device with the ability to withstand extreme temperatures as well as the option to use 50-mK thermal sensor modules that are easy to retrofit. The S74 can also be used indoors.

The S74 can be installed behind a wall, equipment or ceiling covering where only the sensors are visible. Mounts are available for the S74 in dome-style mounts (mono ount) or two sensors together (dual mount). There is also a manual 3 axes pan and tilt (PT) mount for wall or ceiling installation. All mounts come in the color white.

Mobotix S74 High End IP Camera Features and Specifications:

• Up to 4K UHD resolution
• Unsurpassed image quality with minimal light: new ultra-low-light 4MP day and night sensor modules with up to four times greater light sensitivity than the 4K ultra-HD sensor modules
• Max. image size 3840×2160 pixels, 16:9
• Enhanced WDR for all image sensor modules (UHD and ultra-low light)
• Max.frame rate (H.264): 30fp@4K
• Max.frame rate (Mxpeg+): 20fps@4K
• Ambient temperature -40 to 65 degrees celcius )-40 to 149 degrees Farenheit)
• Protection classes IP66 and IK10
• MTBF (Mean Time Between Failure) >9 years
• Three-year to eight year warranty (subject to terms)
• ONVIF profile S and T
• H.264 triple streaming and H.265
• MxPEG + (for license-free use of the S74 in MxMC from version 2.2)
• MJPEG
• Max. power consumption: 25W
• Power supply via PoE Class 4 network cable (IEEE 802.3.at)
• Expandable Internal DVR:8-GB microSD
• Made in Germany
