Valcom VIP-A12A

Valcom VIP-A12A 12in Analog Clock

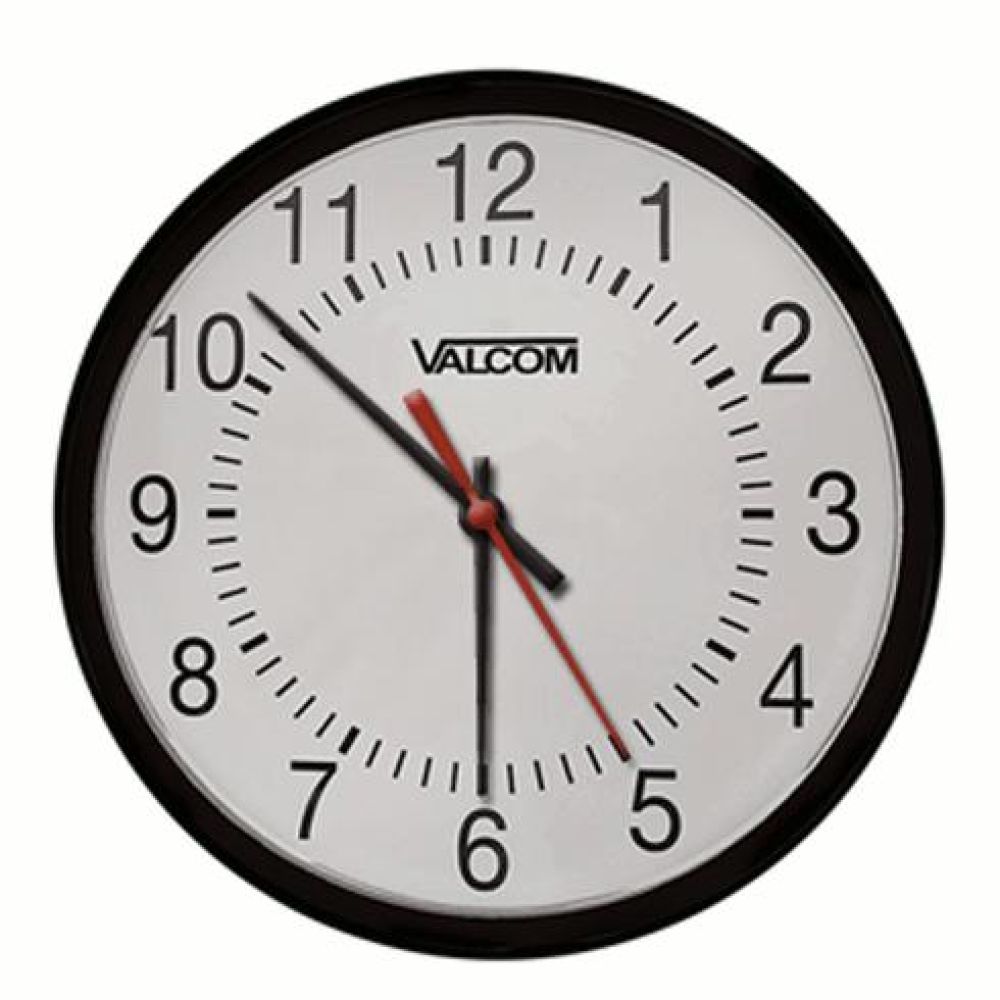

The Valcom VIP-A12A 12 inch Round Analog Clock enable time indication, synchronization, and correction over an IP-based
LAN/WAN. This allows locating a clock display
anywhere on the network. Clock synchronization is
initiated via connection to a factory pre-programmed
time server or can be programmed to sync with any
NTP (Network Time Protocol) server. The enclosure is
made of steel with a durable powder coated finish. The
color of the enclosure can easily be changed to match
any décor. Power is provided to the VIP-A12Avia a Power over Ethernet (PoE) switch meeting the 802.3af specification.

Valcom VIP-A12A Product Overview

Keeping time accurate and consistent throughout a large facility is easy with
Valcom’s new IP PoE Clocks – simply add a clock to any location on the network
via RJ-45 connection. Power to the clock is provided by Power-Over-Ethernet
(PoE) eliminating the need to add costly power outlets. Installation is easy and
inexpensive and allows quick and easy relocation of clocks throughout a facility.

Valcom VIP-A12 Features

• • Set Automatically by NTP (Network Time Protocol)
• • 10/100BaseT Ethernet Compatible
• • DHCP or Static IP Addressable
• • Power over Ethernet (IEEE 802.3af)
• • No Master Clock Required
• • Simple User Control for:
• IP Configuration
• NTP Server Address
• Time Zone Offset From UTC,Daylight Savings Time
• Time Display, 12/24 Hour Format
• Status Reporting
• • Easily Upload Firmware Upgrades
• • Industrial Grade Metal Housings
