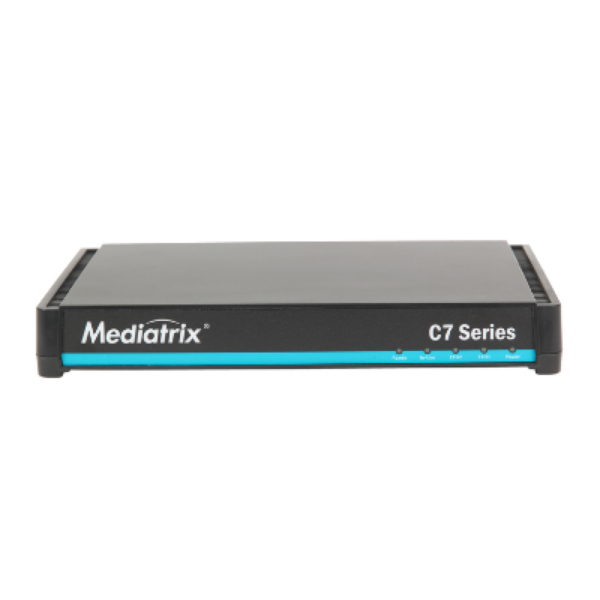

Mediatrix C730 4 FXO Gateway – TR-069 Enabled

Mediatrix C730 4 FXO Gateway – TR-069 Enabled

The Mediatrix C730 VoIP Gateway is a business-class analog gateway featuring 4 FXO ports and 2 10/100 Ethernet ports. The Mediatrix C730s 4 FXO ports allow you to use analog phones or fax machines on a VoIP system, or allow you to connect a legacy analog PBX to a VoIP Service Provider so you can save money with VoIP without replacing your legacy PBX.

Mediatrix C730 Overview

The Mediatrix C7 enables cost-effective VoIP deployments in small offices for both IP Centrex and private network applications. It targets enterprises with brand offices or remote workers, SMB’s seeking to realize the cost savings of VoIP and SIP trunking without upgrading their legacy phone equipment, and businesses looking to migrate to VoIP slowly with a migration transparent to its users.

The Mediatrix C7 series VoIP gateway offers more than just connectivity. The Mediatrix C7 has the additional benefit of supporting high compression codecs simultaneously on each voice ports, thus saving valuable bandwidth.

*North American Power Supply included

Mediatrix C730 Features

• 4 FXO Ports

• TR-069 Enabled

• 2 x 10/100 Ethernet Ports

• DSP supporting a minimum of 8 bi-directional channels of encrypted and compressed media

• SIP – RFC3261

• Dual-Stack IPv4/IPv6 support using ANAT (RFC 4091)

• Vocoders: G.711 (A-law, μ-law), G.723.1, G.726, G.729a/b

• G.168 echo cancellation (64 ms)

• HTTPS, for web pages and for exchange of Configuration File

• SRTP with MIKEY and SDES: Supported Cypher, AES – 128 bits

• Call Forward / Call Transfer / Conference Call / Call Waiting support

• Echo Cancellation / Dynamic Jitter Buffer / Voice Activity Detection / Silence Suppression

• Message Waiting Indication, via FSK

• Flash hook event signaling

• Caller ID Generation (Name & Number) as per Bellcore DTMF or FSK
