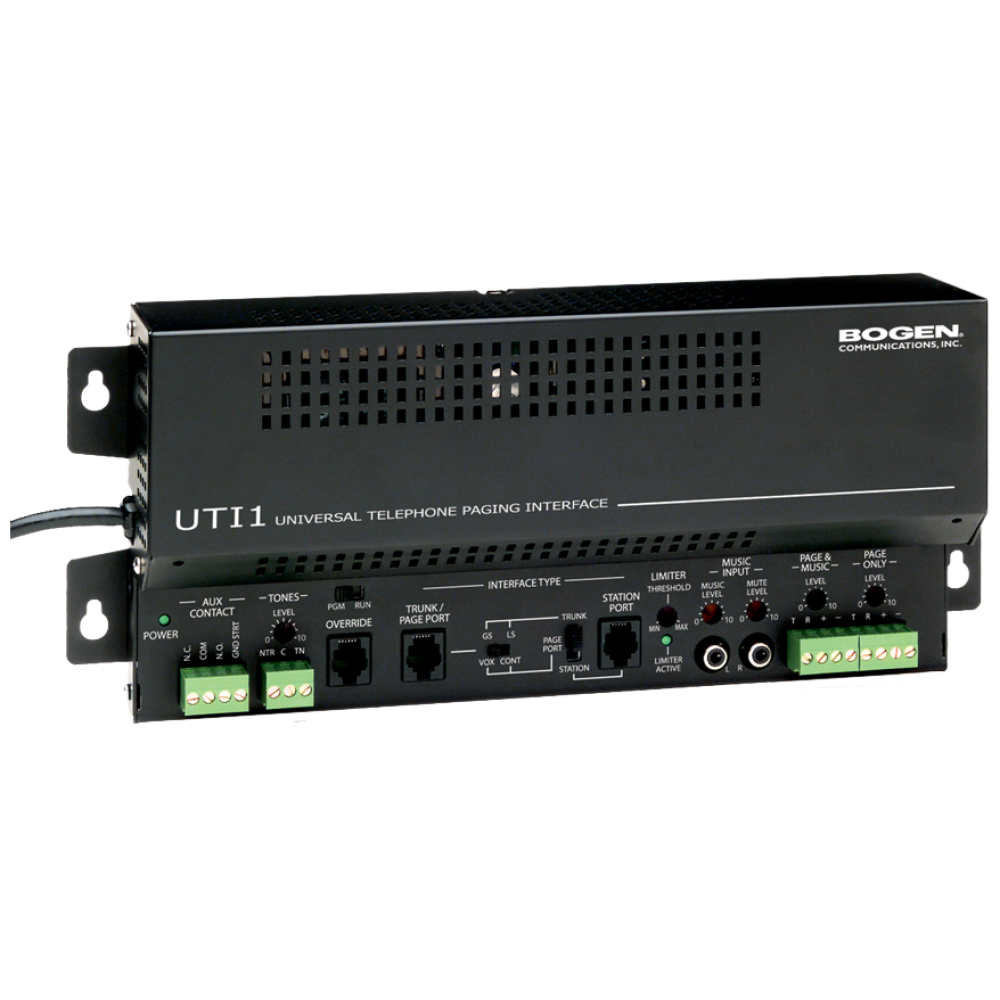

Bogen Universal Telephone Paging Interface Single Zone UTI1

Bogen’s UTI1 is a single-zone telephone interface that works with all standard analog port types. It features a background music (BGM) input with adjustable muting, allowing coordination between music and paging announcements. Additionally, it includes an audio output for “page only” functionality, enhancing application flexibility. The device comes with a built-in 24V DC, 1A power supply for powering amplified speakers, and separate paging volume controls for each output. Contact-triggered tones, night ring signals, and programmable AUX relay contacts are all managed using DTMF tones via the dual-purpose override input.

Bogen Universal Telephone Paging Interface Single Zone UTI1 Features & Specifications:

• Emergency override and general paging
• Interfaces to Loop Start, Ground Start, Analog Station, and Page Ports (with or without contact closure activation)
• Background music (BGM) input with level control and variable muting
• Separate Page and BGM and Page Only
• Level control for each output
• 24V DC, 1A power supply
• 150 Speaker T/R drive capacity per output
• Page level limiter with active indicator
• Override input (loop start or page port)
• Programmable timeout for station
• Tone burst (2 to 7 sec), chime, and whoop tone selections
• Micro-controller operated, DTMF programmable
• Night ring tone or chime selection
• Programming through override
• Wall-mount design
• FCC Part 68 Registered
• Listed to UL Standard 60950 for U.S. and Canada
