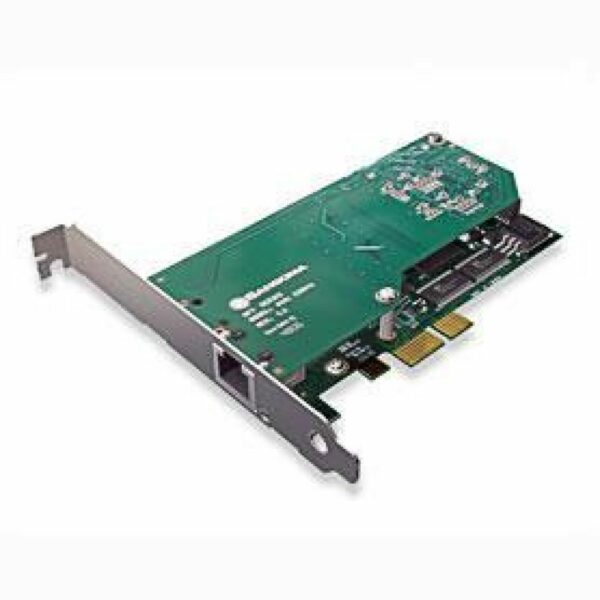

Sangoma A101DE Single T1/E1 PCIe Card with Echo Cancellation

Sangoma A101DE Digital Telephony Card Overview

The Sangoma A101DE is a single port T1/E1/J1 card with available Telco-grade hardware echo cancellation. It’s designed for optimum voice support for smaller systems. The Sangoma A101 one port T1 / E1 SD-WAN failover and data card provides support for data transfer rates up to 1.544 Mbps of full duplex data. The A101 series telephony cards are utilized to lengthen the life of data WAN networks for businesses with more than one location. These telephony cards work with most commercial grade servers so you can keep existing hardware routing devices in-house. With Sangoma cards, you can always take advantage of hardware and software improvements, as soon as they become available.

Sangoma A101DE Features

• Fully PCI 2.2 compliant, and X1 PCI express
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Single synchronous PCI interface for all ports
• Interfaces: 1 x RJ45 connector for up 1.544Mbps of full duplex data
• Includes on-board diagnostic tool kit
• Supports most motherboards, servers and Linux OS
• 2U form factor
• 120mm x 55mm for use in restricted chassis
