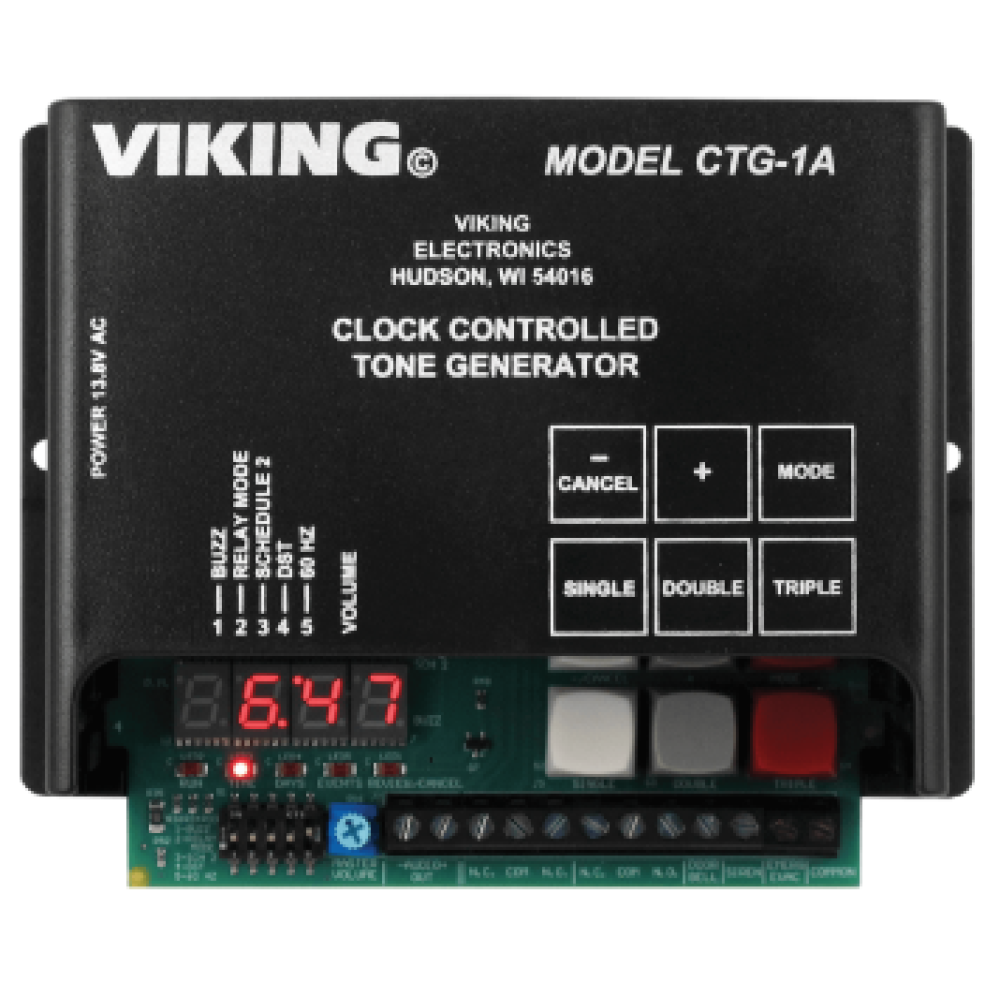

Viking Clock-Controlled Tone Generator CTG-1A

The CTG-1A can be programmed to output single, double or triple alert tones with up to 128 events in a 24 hour period in each of two separate schedules. These bong / buzzer sounds are ideal for indicating the start and end of shifts, break times, lunch periods, etc. for factories, schools, or any business requiring an audible indication of specified times.

Viking Clock-Controlled Tone Generator CTG-1A Features & Specifications:

• Accurate 24 hour digital time clock displays hours and minutes synced to AC power
• User programmable 24 hour, 128 event timer in two separate schedules
• Programmable day of week on/off feature
• Programmable single, double or triple alert tone output (select bong or buzzer)
• Three contact closure controlled sounds:
  • Emergency siren (yelp) sound
  • Temporal (slow whoop) evacuation signal*
  • Doorbell (chime) sound
• 600 Ohm line level audio output with volume control
• Non-volatile memory with four day clock backup
• Two sets of DPDT relay contacts for muting paging or background music during alert tones or timed relay events
• Switchable 50/60 Hz operation
• Switch for Daylight Saving Time
• Time Relay Mode
